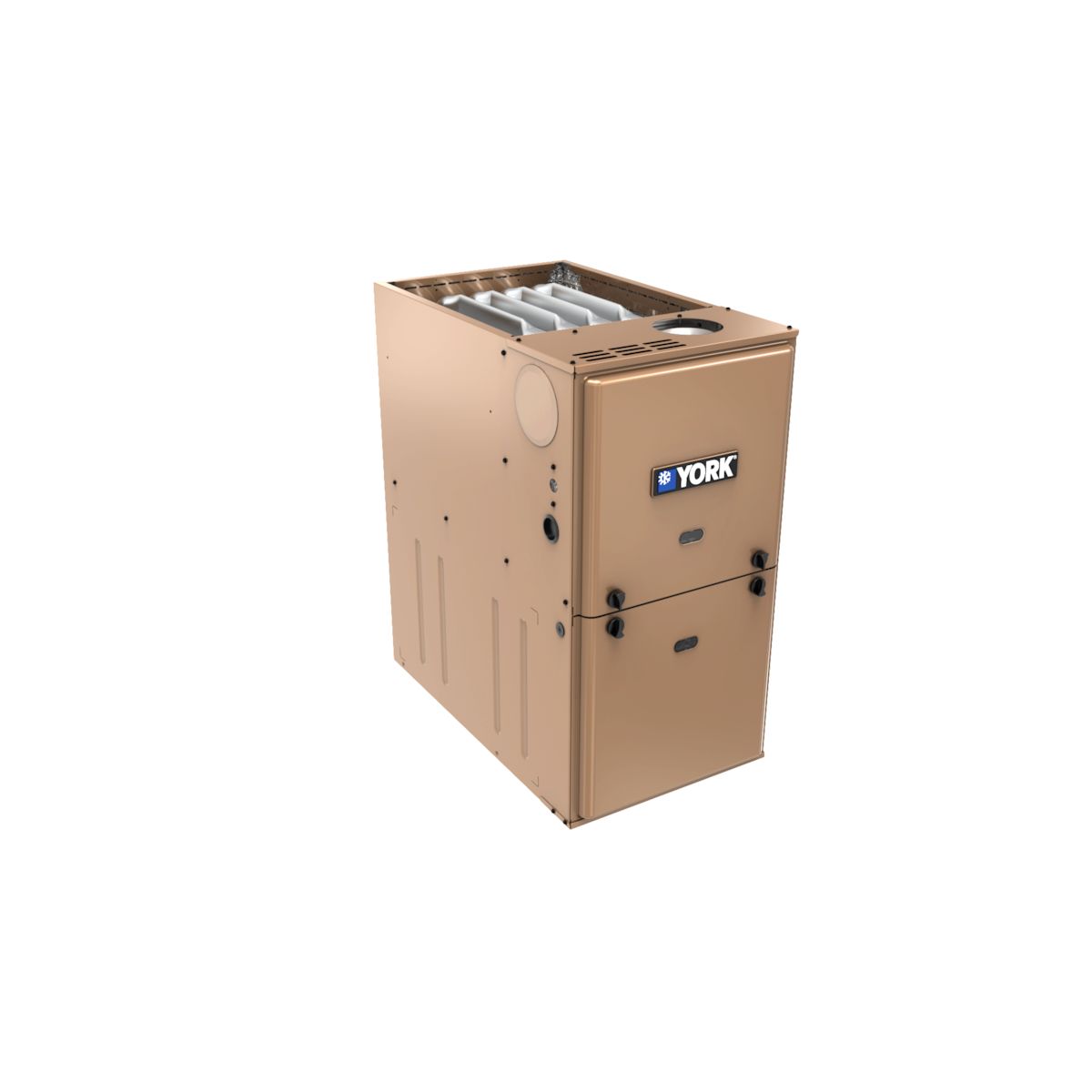

YORK TEST-YP9C120D20MP13C 120 MBTU, 97% AFUE, MODULATING, MULTI-POSITION, VARIABLE SPEED ECM, 5.0 TON BLOWER

YORK 120,000 BTU 97% AFUE Modulating Multi-Position Furnace

Overview

Built for flexible installation, the YORK YP9C120D20MP13C is a multi-position 120,000 BTU furnace rated at 97% AFUE. It uses a variable speed ECM blower rated at 5.0 tons and has a cabinet listed at 24.5 inches wide, 33 inches high, and 29.5 inches deep. Contractors and property owners can use these specifications to see how this YORK furnace lines up with their system requirements.

Quick Facts

• 120,000 BTU (120 MBTU), 97% AFUE furnace
• YORK part number YP9C120D20MP13C
• Modulating heating
• Multi-position installation
• Variable Speed ECM blower, 5.0 ton
• Cabinet: 24.5 inches W x 33 inches H x 29.5 inches D

120,000 BTU

BTU, or British Thermal Unit, ratings are a standard way to describe and compare furnace capacity. The YORK YP9C120D20MP13C is rated at 120,000 BTU, also listed as 120 MBTU. Compare this figure with the heating requirements for your project.

97% AFUE

AFUE, or Annual Fuel Utilization Efficiency, measures how much of the fuel energy a furnace turns into usable heat over a typical year. A higher number indicates greater efficiency. This furnace carries a 97% AFUE rating.

Modulating Heat

A modulating furnace adjusts its heat output across a range instead of running at one or two fixed levels. This lets the furnace closely match the heat being called for. This model is listed as modulating with a variable speed blower.

Multi-Position Design

This furnace is listed as multi-position, so it can be set up for upflow, downflow, or horizontal left or right installation. That flexibility helps installers adapt to the space and ductwork on site.

Variable Speed ECM Blower

ECM stands for electronically commutated motor. A variable speed ECM blower can adjust its speed across a range rather than running at a few set speeds. The blower is rated at 5.0 tons, so confirm that this rating fits the cooling equipment and duct design planned for the system.

Cabinet Dimensions

The cabinet is listed at 24.5 inches wide, 33 inches high, and 29.5 inches deep. Use these measurements to plan for placement, access, and clearances.

Check the model number, 120,000 BTU capacity, efficiency, blower size, and cabinet dimensions against your project requirements before placing your order.
