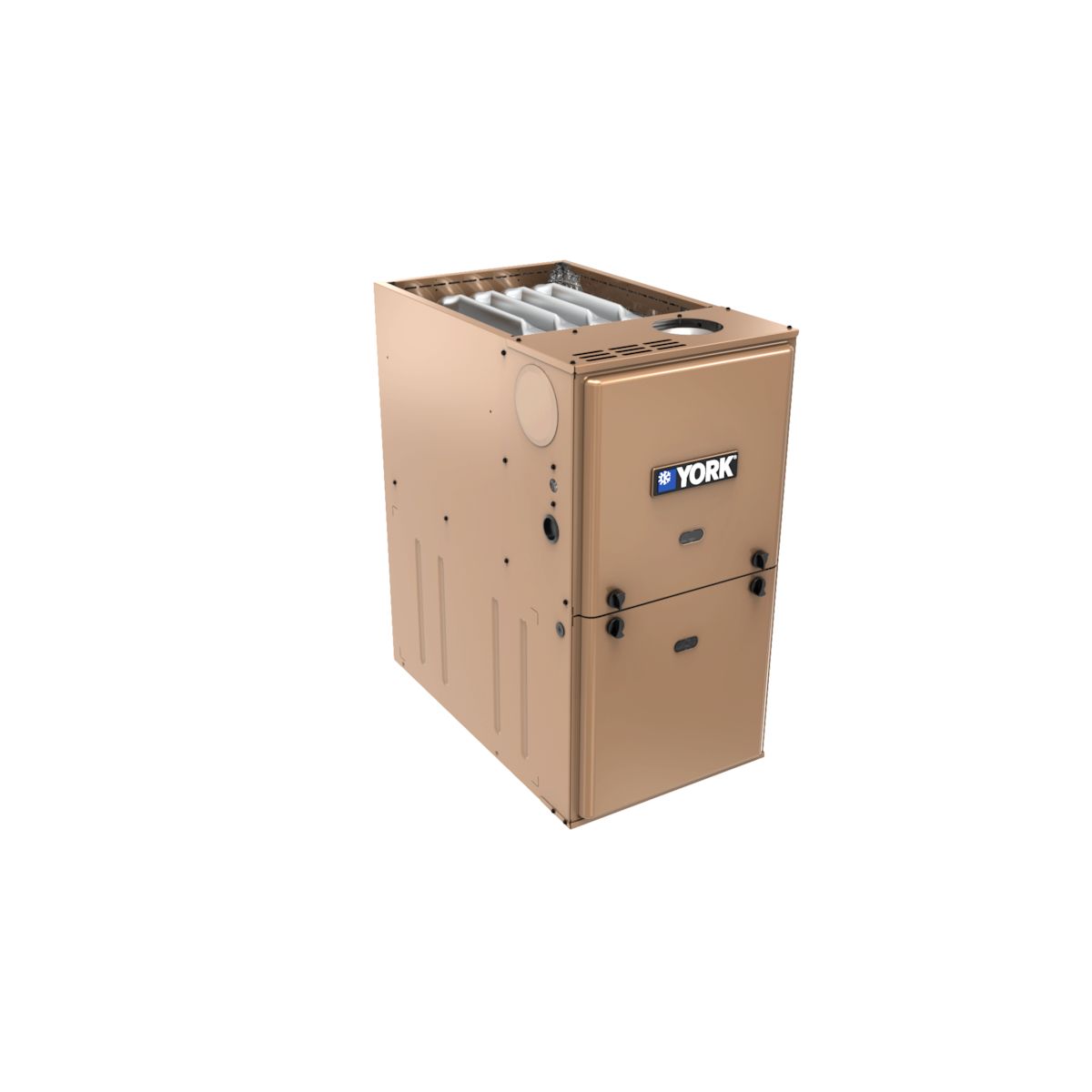

YORK TEST-Y81E130D20SMPS1 130 MBTU, 80% AFUE, 1-STAGE, MULTI-POSITION, STANDARD ECM, 5.0 TON BLOWER

YORK 130,000 BTU 80% AFUE Single-Stage Multi-Position Furnace

Overview

For projects that call for a 130,000 BTU furnace, the YORK Y81E130D20SMPS1 pairs a 80% AFUE rating with single-stage (1-Stage) heating. It uses a standard ECM blower rated at 5.0 tons and has a cabinet listed at 24.5 inches wide, 33 inches high, and 29.5 inches deep. Contractors and property owners can use these specifications to see how this YORK furnace lines up with their system requirements.

Quick Facts

• 130,000 BTU (130 MBTU), 80% AFUE furnace
• YORK part number Y81E130D20SMPS1
• Single-stage (1-Stage) heating
• Multi-position installation
• Standard ECM blower, 5.0 ton
• Cabinet: 24.5 inches W x 33 inches H x 29.5 inches D

130,000 BTU

BTU, or British Thermal Unit, ratings are a standard way to describe and compare furnace capacity. The YORK Y81E130D20SMPS1 is rated at 130,000 BTU, also listed as 130 MBTU. Compare this figure with the heating requirements for your project.

80% AFUE

AFUE, or Annual Fuel Utilization Efficiency, measures how much of the fuel energy a furnace turns into usable heat over a typical year. A higher number indicates greater efficiency. This furnace carries a 80% AFUE rating.

Single Stage Heating

Single-stage, or 1-stage, furnaces run at one fixed heat output level. The furnace turns on at full output when heat is needed and shuts off once the thermostat setting is reached.

Multi-Position Design

This furnace is listed as multi-position, so it can be set up for upflow, downflow, or horizontal left or right installation. That flexibility helps installers adapt to the space and ductwork on site.

Standard ECM Blower

ECM stands for electronically commutated motor. This standard ECM blower offers multiple speed taps that can be set to match system airflow needs. The blower is rated at 5.0 tons, so confirm that this rating fits the cooling equipment and duct design planned for the system.

Cabinet Dimensions

The cabinet is listed at 24.5 inches wide, 33 inches high, and 29.5 inches deep. Use these measurements to plan for placement, access, and clearances.

Compare the model number, capacity, efficiency rating, configuration, blower rating, and dimensions listed here with your system requirements before purchasing.
